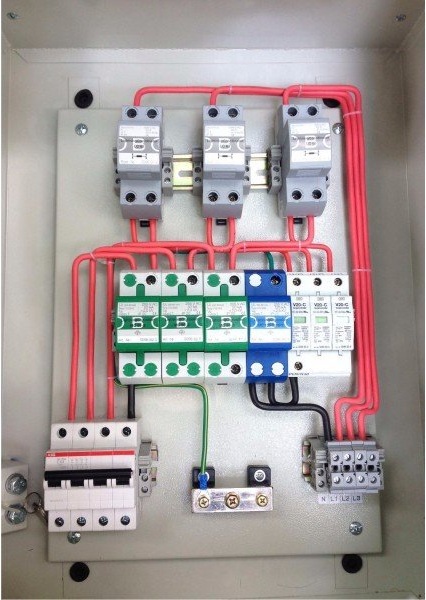

CSAF1125A-NE |
255 |
1+NPE |
1 |
|
|
Dimensions
|
CSAF1125A-NE |
||
|
Nominal voltage V |
Un |
230 |
|
Highest continuous voltage V |
|
255 |
|
Rated current (A) |
IL |
125 |
|
Power distribution systems |
|
TN-S, TT |
|
SPD to EN 61643-11 |
|
Type 1+2 |
|
SPD to IEC 61643-11 |
|
Class I+II |
|
Lightning protection zone LPZ |
|
0→2 |
|
Primary surge protection rating per phase |
|
50kA 10/350μs & 50kA 8/20μs |
|
Secondary surge protection rating per phase |
|
40kA 8/20μs |
|
N – E protection |
|
125kA 10/350μs & 125kA 8/20μs |
|
Protection Modes: |
|
L-N, N-PE |
|
Inductor: |
|
Non-saturating, low pass, power and noise filtering |
|
Voltage protection level kV |
Up |
<1.3 |
|
Response time ns |
tA |
<25 |
|
Follow current quenching capacity (eff) [N-PE] kA |
|
25 |
|
Maximum back-up fuse A |
|
125 |
|
Temperature range °C |
ϑ |
-40 - 85 |
|
Protection status indication |
|
Status Indicator |
|
Environmental rating: |
|
0 – 95% humidity |
|
Protection rating |
|
IP55 |
|
Enclosure |
|
Metal enclosure |
|
Colour |
|
White |
|
Mounting |
|
Wall mount |
|
Warranty |
|
3 years manufacturer’s warranty |
|
Connection cross-section rigid mm2 |
|
10-50 |
|
Connection cross-section, multi-wire mm² |
|
10-35 |
|
Connection cross-section, flexible mm² |
|
10-25 |
|
|
|
|
