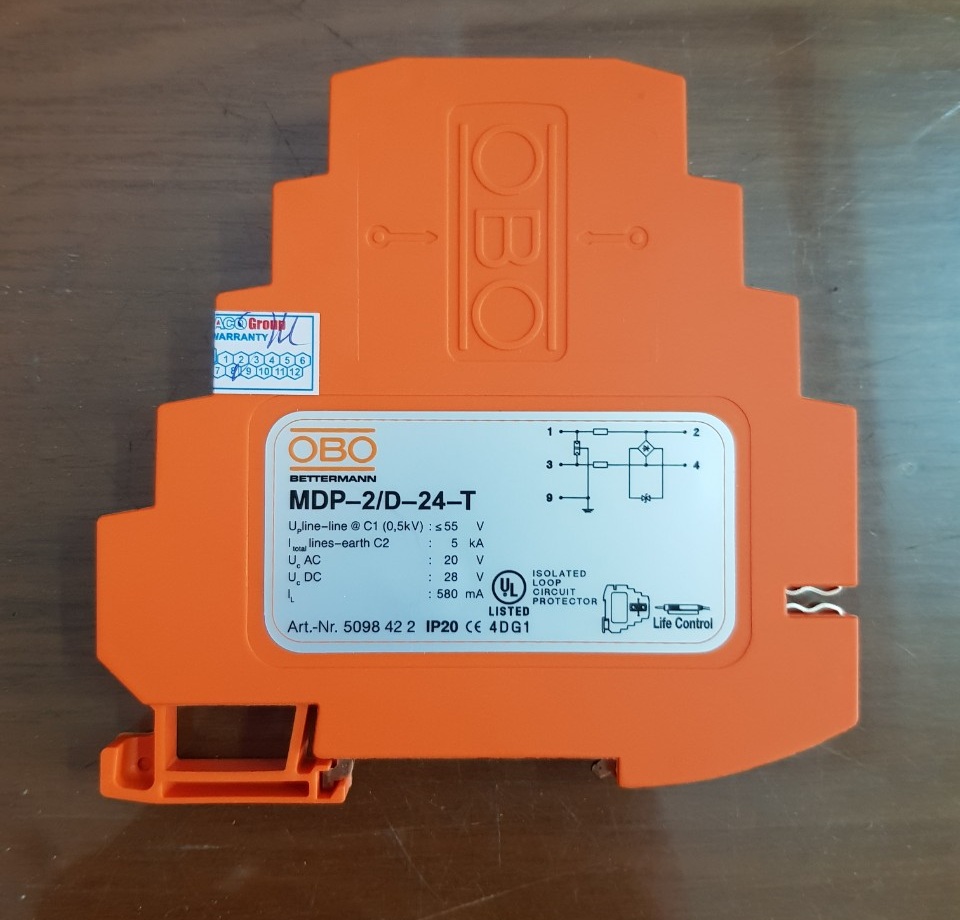

Thiết bị chống sét đường tín hiệu OBO MDP-2 D-24-T
MDP-2 D-24-T-10, 5098 42 5, 5098425, chống sét hệ thống đo lường, hệ thống điều khiển, hệ thống công nghệ thông tin - viễn thông
MCR protection for multi-wire systems (testable) to 10 A
Series protection device, 2-pole, 24 V version
MDP... D-24-T-10: Lightning barrier with test function; 24 V version
• Nominal load current 10 A
• Protection device for multi-wire systems
• Direct shield earthing and screwless connection terminals
• Space-saving width of just 8.7 mm
• Protection circuit testable with Life Control
• High bandwidth to 100 MHz
• UL-listed (4DG1)
Application: Universal use on 35 mm hat profile rail in any standard distribution housing.
