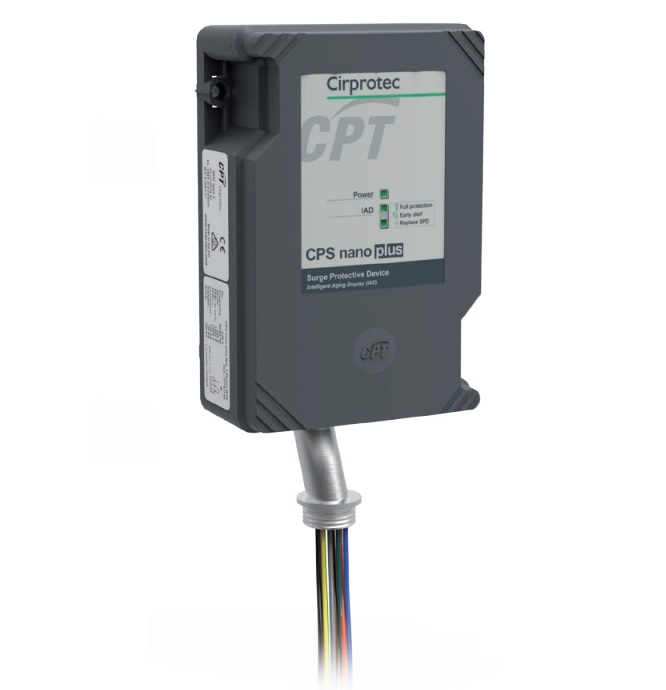

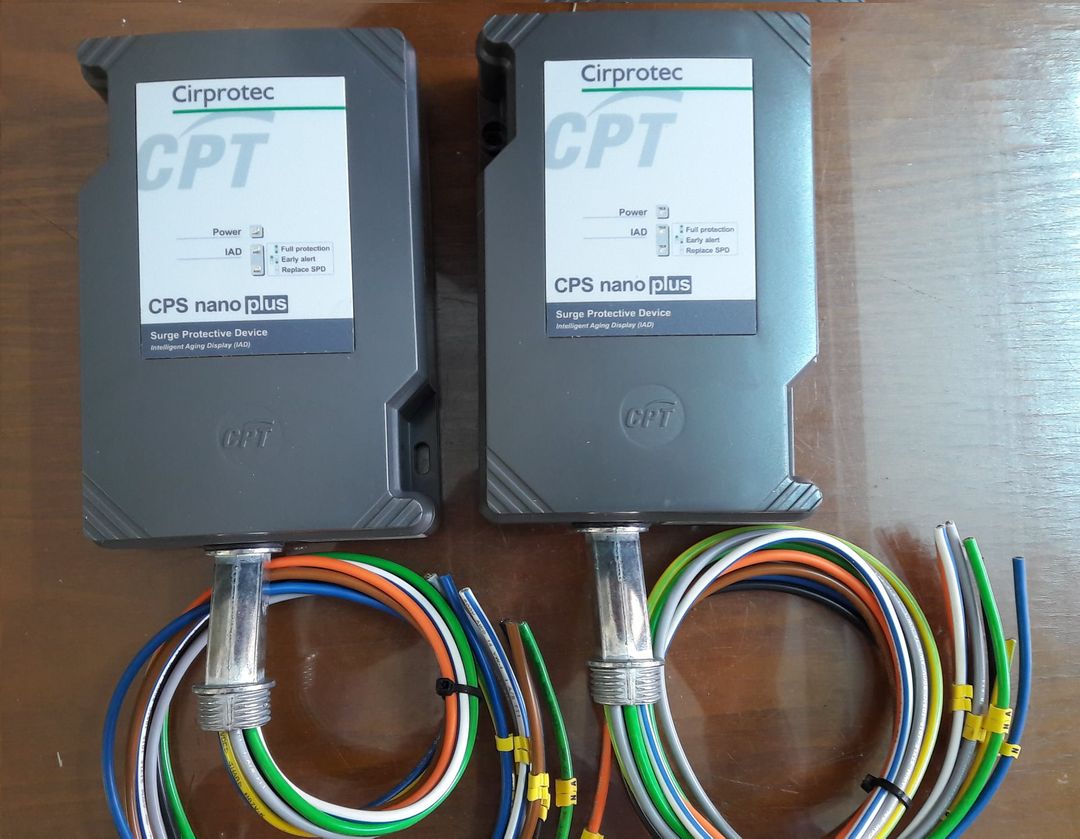

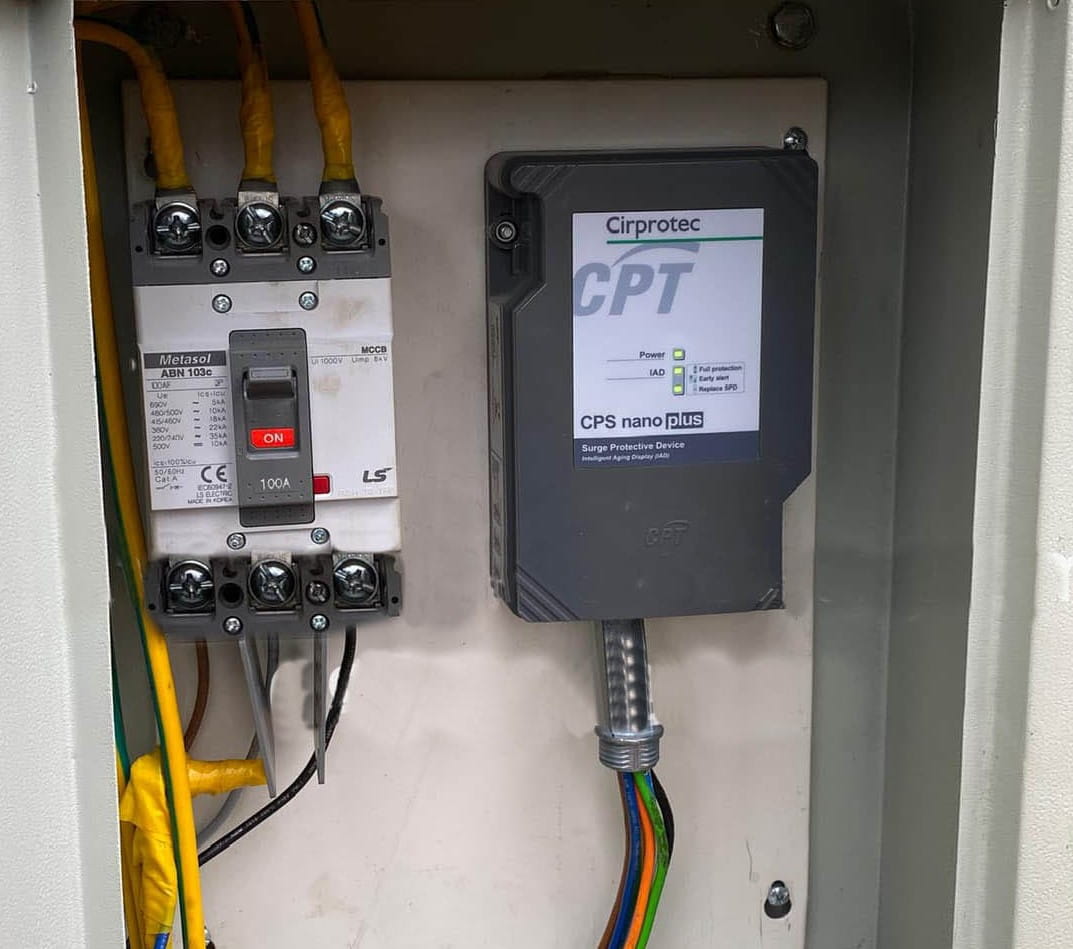

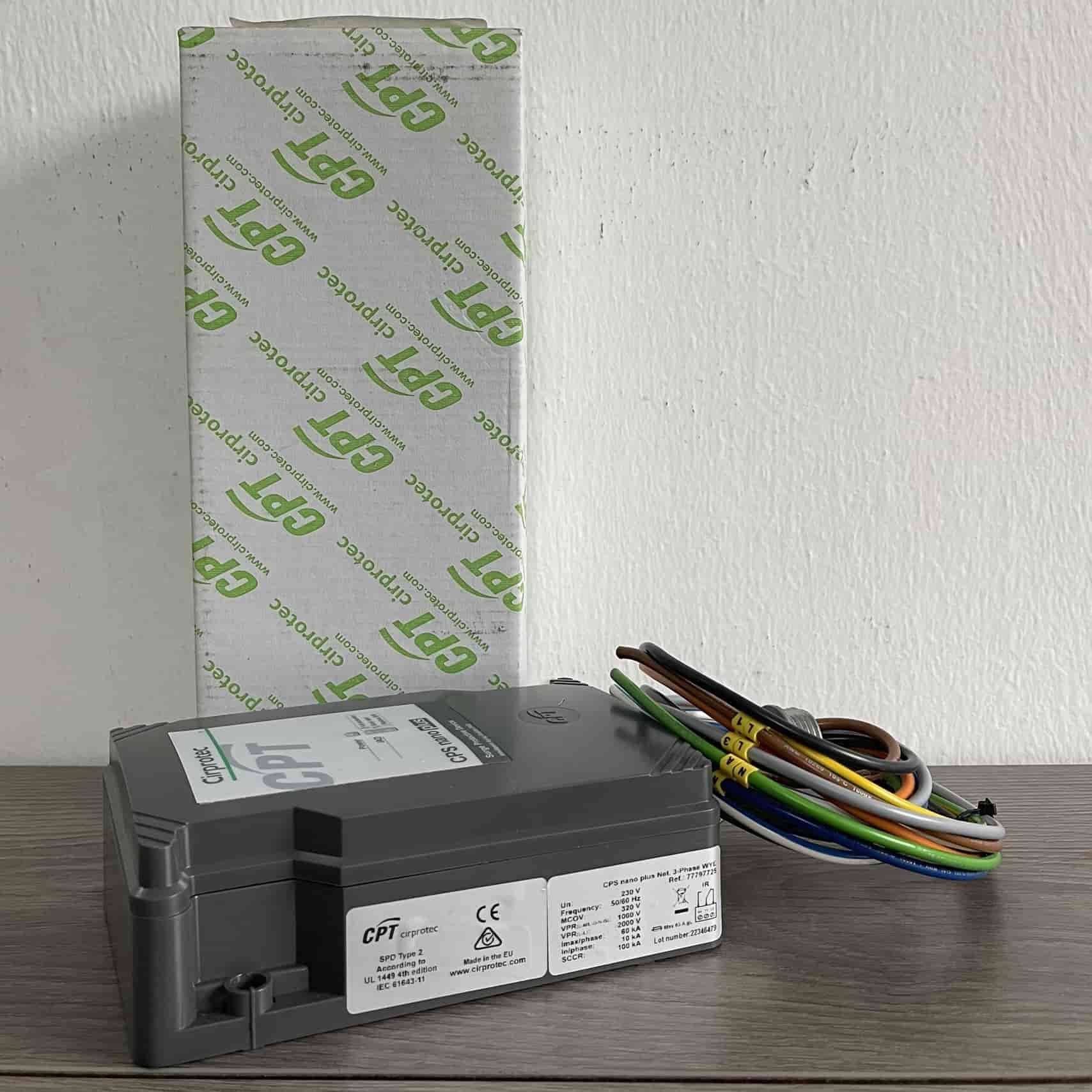

SPD-TVSS Non-modular compact surge protection device (hardwired transient voltage surge suppressor), UL 1449 3rd Ed. for, 3 Phase WYE (4W+G), 160 kA, VLN=230 V (L-N), w/ Intelligent Aging Display (IAD), remote indication, IP 66 / NEMA 4, EMI filter.
| Technical Data | Value | Units | |
| Commercial data | |||
| Code | 77797755 | ||
| Part Number | CPS nano plus 160 kA 3 Phase WYE 230 V | ||
| Status | Available | ||
| EAN | 8.4353E+12 | ||
| Tariff code | 8536.30.90 | ||
| Packaging height | 65 | [mm] | |
| Packaging width | 107 | [mm] | |
| Packaging length | 255 | [mm] | |
| Packaging weight | 948 | [gr] | |
| Technical features | |||
| Format | Non-modular (hardwired) | ||
| Surge modules | 7 | ||
| Protected wires | 4W+G | ||
| Product standards | UL 1449 3rd edition; IEC 61643-11 | ||
| Certifications | CE; RCM | ||
| Designation according to UL 1449 3rd Ed. | Type 2 | ||
| Designation according to IEC 61643-11 | Class II | ||
| Protection mode | Common & differential protection | ||
| Nominal voltage AC 50-60 Hz (L-N) | Un (L-N) | 230 | [V] |
| Nominal voltage AC 50-60 Hz (L-L) | Un (L-L) | 400 | [V] |
| Maximum continuous operating voltage (L-N) | MCOV (L-N) | 320 | [V] |
| Maximum discharge current per phase (8/20) | Imax/Phase | 160 | [kA] |
| Nominal discharge current per phase (8/20) | In/Phase | 20 | [kA] |
| Voltage protection level (L-N) at In | VPR (L-N) | 1000 | [V] |
| Voltage protection level (L-G) at In | VPR (L-G) | 1000 | [V] |
| Voltage protection level (N-G) at In | VPR (N-G) | 1000 | [V] |
| Voltage protection level (L-L) at In | VPR (L-L) | 2000 | [V] |
| Maximum back-up fuse | 63 | A [gL] | |
| Short circuit withstand | SCCR | 100 | [kA] |
| Response Time | tA | 1 | [ns] |
| EMI filter | Yes | ||
| Filter | ≤ 40 | [dB] | |
| Multi-discharge system | MDS | Yes | |
| Remote indication | Yes | ||
| Protection status LED | Yes | ||
| Intelligent aging display led | IAD | 100, 50, 0 | [%] |
| Voltage LED | Yes | ||
| Dynamic thermal disconnection | Yes | ||
| Warranty | 5 years | ||
| Insulating material & flammability class | PC; V-0 | ||
| Temperature range | -40 ºC ... +70 ºC | ||
| Enclosure | IP 66 / NEMA 4 | ||
| Product height | 203 | [mm] | |
| Product width | 100 | [mm] | |
| Product length | 51,5 | [mm] | |
| Product weight | 890 | [gr] | |

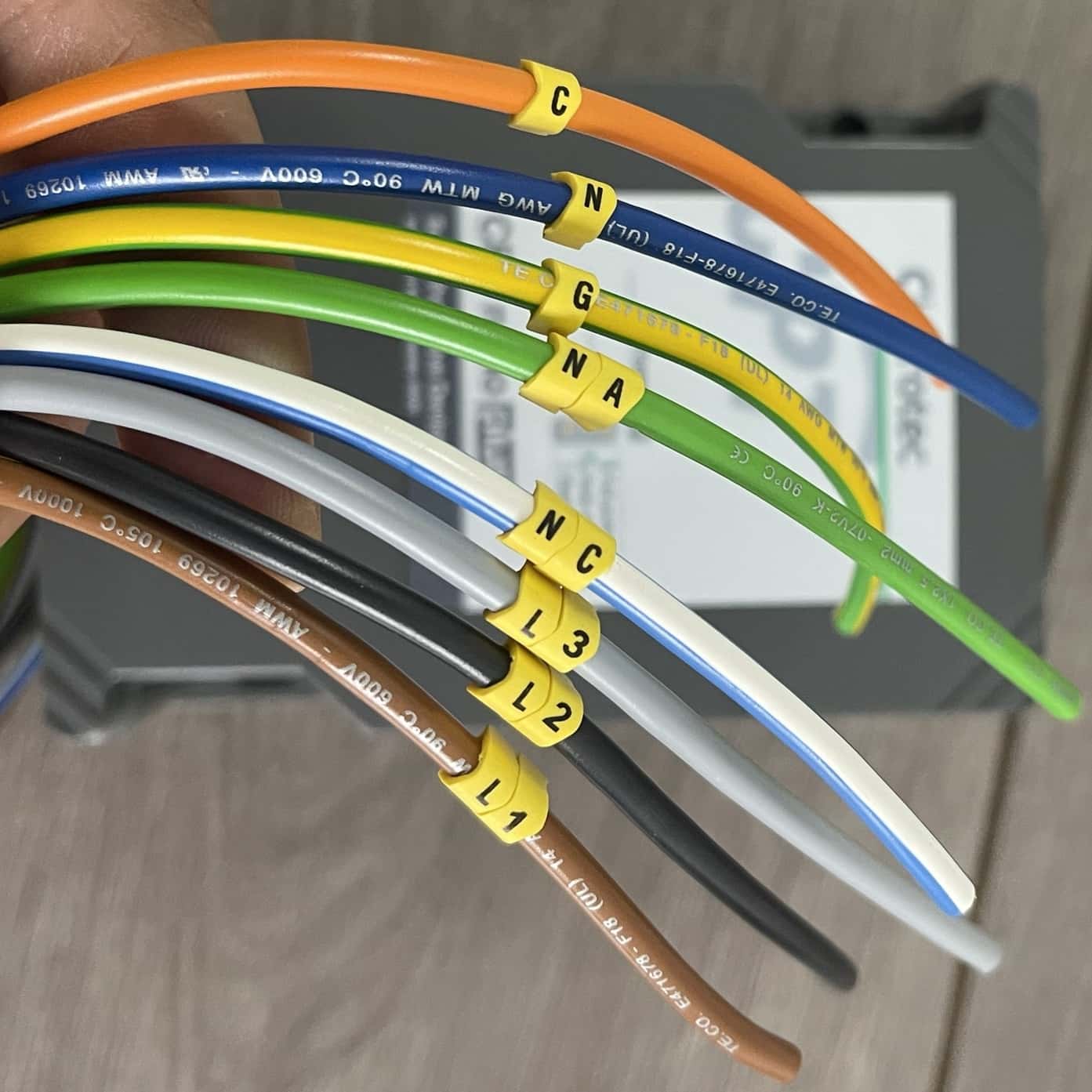

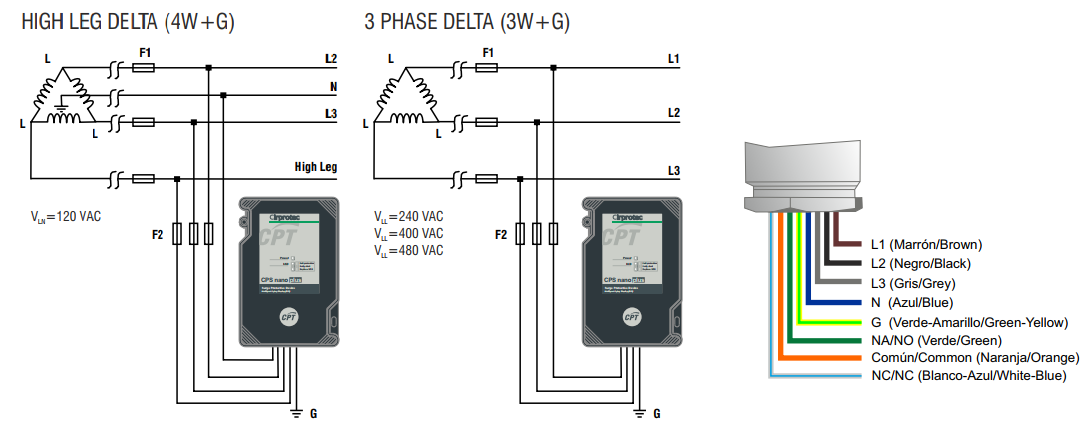

| Wiring of connection circuit | |||
| Flexible bare wire | 10 | [mm] | |
| Max. flexible conductor section | 2,5 | [mm²] | |
| Max. flexible conductor section | #14 | [AWG] | |
